FP1233E 12 ton Gasoline Engine Firewood Processor
Product description:
FP1233G fire wood processor is a simple and safe to use product designed to cut and split logs into fire woods efficiently. Both 2way and 4 way wedges are included. The ram extends and retracts automatically. The height of the conveyor can be adjusted to multiple heights simply by using winch to raise and lower it. It can also be folded in half for easy storage or transport. The conveyor itself is 10” wide and 10’6” long. The rolling log table can also be folded for easy transport and storage.
All major steel components feature either a powder coated or galvanized steel finish for better protection from nature.

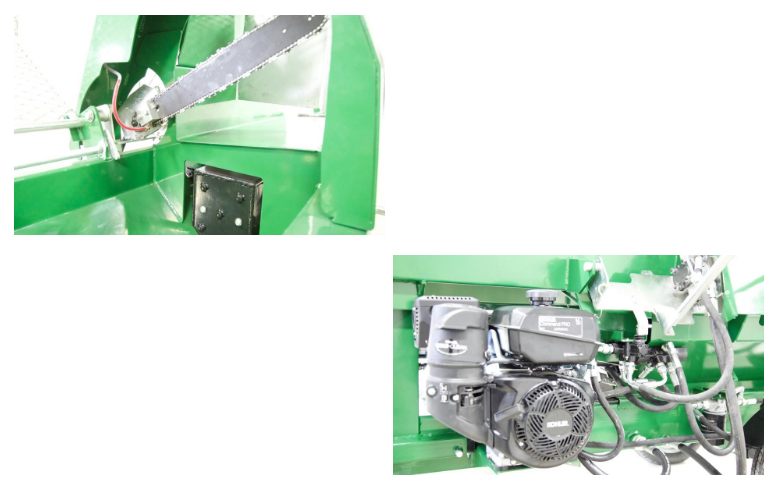

Equipped with hydraulically driven chain saw bar, the chain saw is quite and easy to operate. Chain size:76-0.058-0.325.
12 ton ram pushes wood to 2-way or 4-way wedge splitting wood into 2 or 4 pieces.
Bar oil drip system to keep the chain lubricated while cutting.
Saw dust discharge chute for easy dust collection.
Specifications |
|
Engine | 14HP/15HP |
Max. Splitting Force | 12Ton |
Max. Log Diameter | 33cm |
Max. Log Length | 61cm |
Cycle time | 8 seconds |
Conveyor | 3 Meter Length, 150mm belt width |
Wheel | 12 inch trailer wheel |
Knife | 2&4 ways knife |
Net Weight | 445kg |
Packing | Iron panllet |
Loading Qty. | 10pcs/20'GP |
