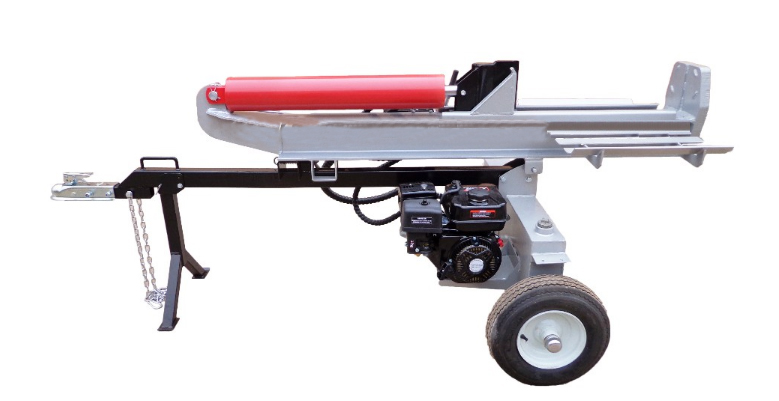

LS2261GA 22Ton Gasoline Engine Fast Log Splitter Horizontal & Vertical
Features

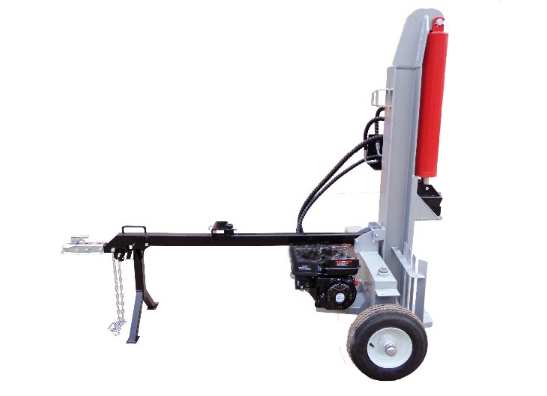

1) Horizontal or vertical splitting
2) Engineered cylinder connection for increased strength
3) Engineered cast steel foot piece
4) Heavy duty hydraulic cylinder producing maximum splitting force
5) Reinforced stripper plates remove stuck logs
6) Shielded wedge and channel beam design for safe operation and clean splitting action
7) Wide log cradle makes splitting wood quicker, easier and safer.
8) Only one moving bolt and no shims
9) Drain plug
10) Road tires for towing
Specifications |
|
Engine | 6.5HP Gasoline Engine |
Max. Splitting Force | 22Ton |
Max. Log Diameter | 36cm |
Max. Log Length | 61cm |
Pump | 8.8/2.1 2-stage pump |
Valve | Auto-return, two/single handles |
Cylinder | 4"X24" hydraulic cylinder |
Cycle time | 7 seconds |
Oil tank | 30 liters |
Wheel | 8" DOT Pneumatic wheel |
Net Weight | 260kg |
Packing | 1pc/iron pallet or wooden case |
Loading Qty | 32pcs/20'GP |
