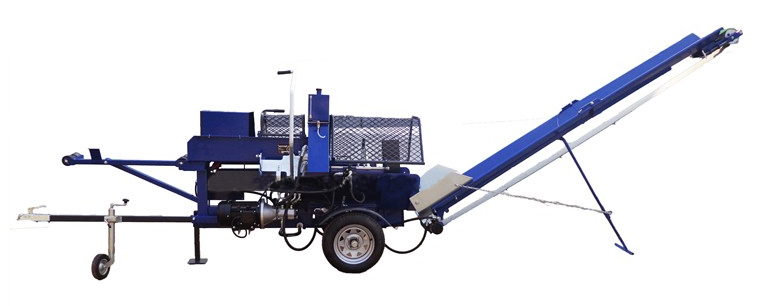

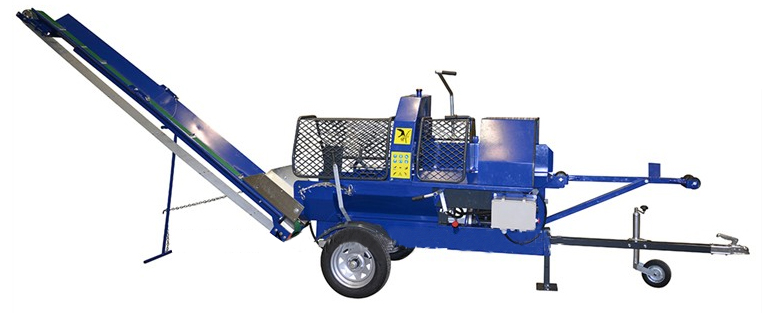

FP0733E 7 ton Electric Motor Firewood Processor

Product description:

FP0733G firewood processor cuts and splits the firewood efficiently. It can produce about 5 m3 fire woods per hour and process logs with length up to 53cm and diameter up to 33cm. FP0733G firewood processor is equipped with auto system. The splitter will automatically start after the log is sawn off. The splitter will stop automatically when the iron net protection cover is open and resume working automatically when the iron net protection cover is closed. Chain saw starts working automatically when cutting log and stops working automatically when cutting is done.

FP0733G firewood processor can come with either gasoline engine or electric motor. It also can come with or without conveyor.

FP0733G firewood process with conveyor is equipped with additional hydraulic pump which drives the conveyor belt.

Chain saw motor is 30L/min, 4800rpm. Chain size:64-1.5-0.325. Equipped with hydraulically driven chain saw bar, the chain saw is quite and easy to operate.

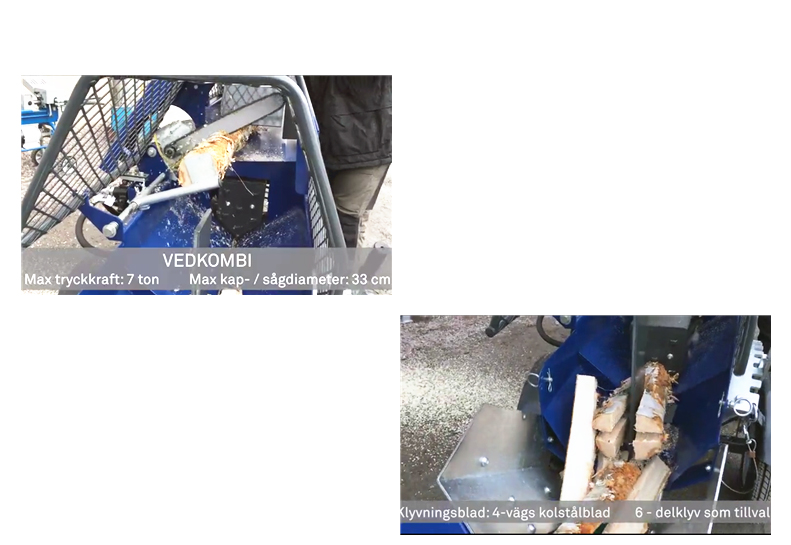

7 ton ram pushes wood to 4-way wedge splitting wood into 4 pieces.

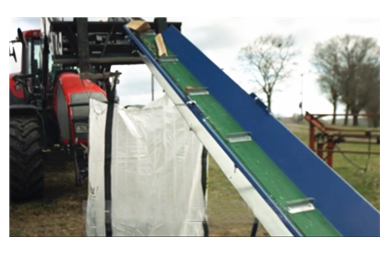

Conveyor is 3.2m long and 100mm wide.

Specifications

Motor 380V/50HZ 7.5KW Electric Motor
Max. Splitting Force 7Ton
Max. Log Diameter 33cm
Max. Log Length 53cm
Saw Motor 30L/min, 4800rpm
Chain Size 64-1.5-0.325
Hydraulic Pump 1 30L/min, 200bar
Hydraulic Pump 2 18L/min, 200bar
Cycle time 6 seconds
Conveyor 3.2 Meter
Wheel 12 inch trailer wheel
Knife 4 ways knife
Net Weight 405kg
Packing  Iron panllet
Loading Qty.  14pcs/20'GP
